Indicații:
Guided Surgical Set (kit chirurgical ghidat) B&B Dental
Beneficii:
Morfologia instrumentelor din interiorul kitului chirurgical B&B DENTAL este special concepută pentru inserarea ghidată a implanturilor din liniile SLIM, 3P și EV. Gâtul frezelor permite o inserare precisă în interiorul manșonului, determinând adâncimea osteotomiei cu un stop sigur, situat la o distanță de 9 mm de marginea crestală a osului.
Kitul a fost proiectat cu un ansamblu complet de instrumente, pentru a răspunde tuturor nevoilor clinice în timpul intervențiilor chirurgicale, și este compatibil cu manșoanele B&B Dental, oferind un nivel ridicat de confort în utilizare.
Prezentare:

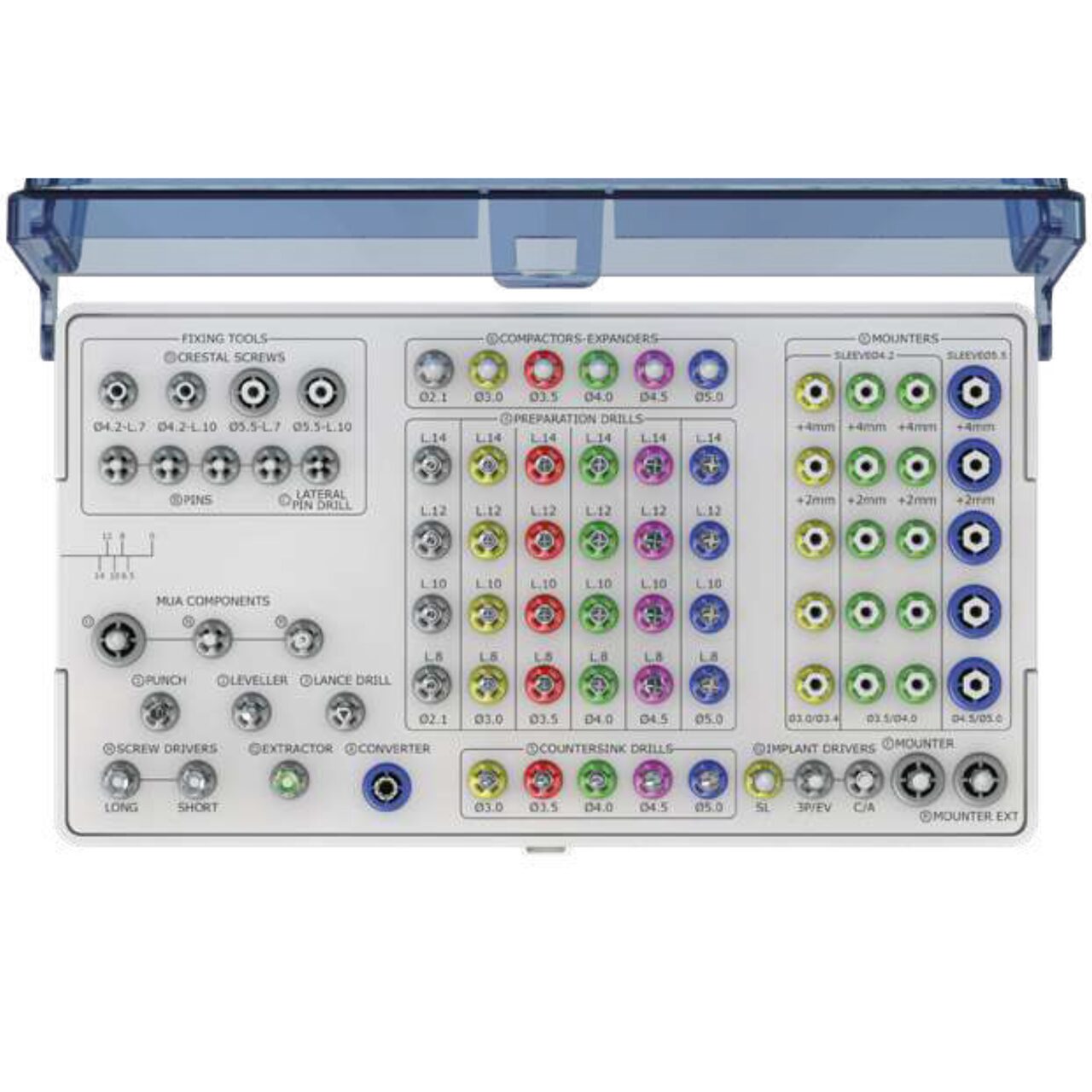

Tava superioară:
Crestal pin Ø 4,2 H.7 – Ref. GD-PIN/57
Crestal pin Ø 4,2 H.10 – Ref. GD-PIN/510
Crestal pin Ø 5,5 H.7 – Ref. GD-PIN/67
Crestal pin Ø 5,5 H.10 – Ref. GD-PIN/610
Pin – Ref. GD-PING
Pin drill – Ref. GD-FOG
Positioner for straight MUA – Ref. INN-00637
Positioner for angled MUA – Ref. 023-MUA
Reamer – Ref. GD-BM
Mucotome – Ref. GD-263
Crestal leveller – Ref. GD-264
Screw driver (short) – Ref. INN-61000
Screw driver (long) – Ref. INN-61000L
Extractor key – Ref. INN-6181L
Lance drill – Ref. GD-LANCIA
Converter – Ref. GD-708
Drill Ø 2,1 L.8 – Ref. GD-21-08
Drill Ø 2,1 L.10 – Ref. GD-21-10
Drill Ø 2,1 L.12 – Ref. GD-21-12
Drill Ø 2,1 L.14 – Ref. GD-21-14
Drill Ø 3 L.8 – Ref. GD-30-08
Drill Ø 3 L.10 – Ref. GD-30-10
Drill Ø 3 L.12 – Ref. GD-30-12
Drill Ø 3 L.14 – Ref. GD-30-14
Drill Ø 3,5 L.8 – Ref. GD-35-08
Drill Ø 3,5 L.10 – Ref. GD-35-10
Drill Ø 3,5 L.12 – Ref. GD-35-12
Drill Ø 3,5 L.14 – Ref. GD-35-14
Drill Ø 4 L.8 – Ref. GD-40-08
Drill Ø 4 L.10 – Ref. GD-40-10
Drill Ø 4 L.12 – Ref. GD-40-12
Drill Ø 4 L.14 – Ref. GD-40-14
Drill Ø 4,5 L.8 – Ref. GD-45-08
Drill Ø 4,5 L.10 – Ref. GD-45-10
Drill Ø 4,5 L.12 – Ref. GD-45-12
Drill Ø 4,5 L.14 – Ref. GD-45-14
Drill Ø 5 L.8 – Ref. GD-50-08
Drill Ø 5 L.10 – Ref. GD-50-10
Drill Ø 5 L.12 – Ref. GD-50-12
Drill Ø 5 L.14 – Ref. GD-50-14
Countersink drill Ø 3 – Ref. GD-SV-30
Countersink drill Ø 3,5 – Ref. GD-SV-35
Countersink drill Ø 4 – Ref. GD-SV-40
Countersink drill Ø 4,5 – Ref. GD-SV-45
Countersink drill Ø 5 – Ref. GD-SV-50
Guided mounter (SLIM implant) – Ref. GD-00578
Guided implant driver – Ref. GD-701
Guided direct driver for guided mounter – Ref. GD-00778
Mount extractor – Ref. GD-776
Driver for mounters – Ref. GD-769
Mounter Ø 3–Ø 3,4 H.0 – Ref. GD-767/3
Mounter Ø 3–Ø 3,4 H.+2 – Ref. GD-767/32
Mounter Ø 3–Ø 3,4 H.+4 – Ref. GD-767/34
Mounter Ø 3,5–Ø 4 H.0 – Ref. GD-767/1
Mounter Ø 3,5–Ø 4 H.+2 – Ref. GD-767/12
Mounter Ø 3,5–Ø 4 H.+4 – Ref. GD-767/14
Mounter Ø 4,5–Ø 5 H.+2 – Ref. GD-767/22
Mounter Ø 4,5–Ø 5 H.+4 – Ref. GD-767/24
Compactor Ø 2,1 – Ref. GD-761/2
Compactor Ø 3 – Ref. GD-761/2A
Compactor Ø 3,5 – Ref. GD-761/3A
Compactor Ø 4 – Ref. GD-761/4A
Compactor Ø 4,5 – Ref. GD-761/5A
Compactor Ø 5 – Ref. GD-761/6A

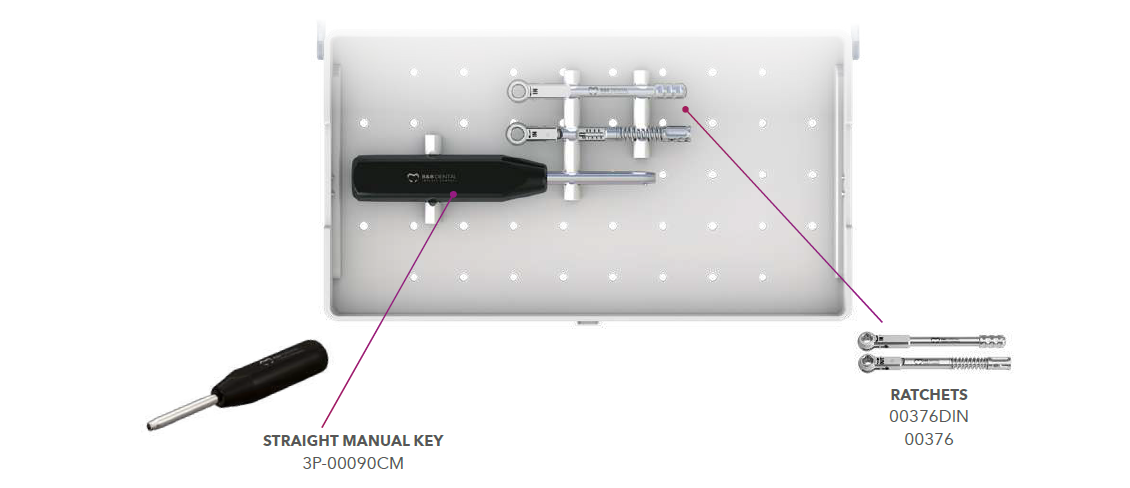

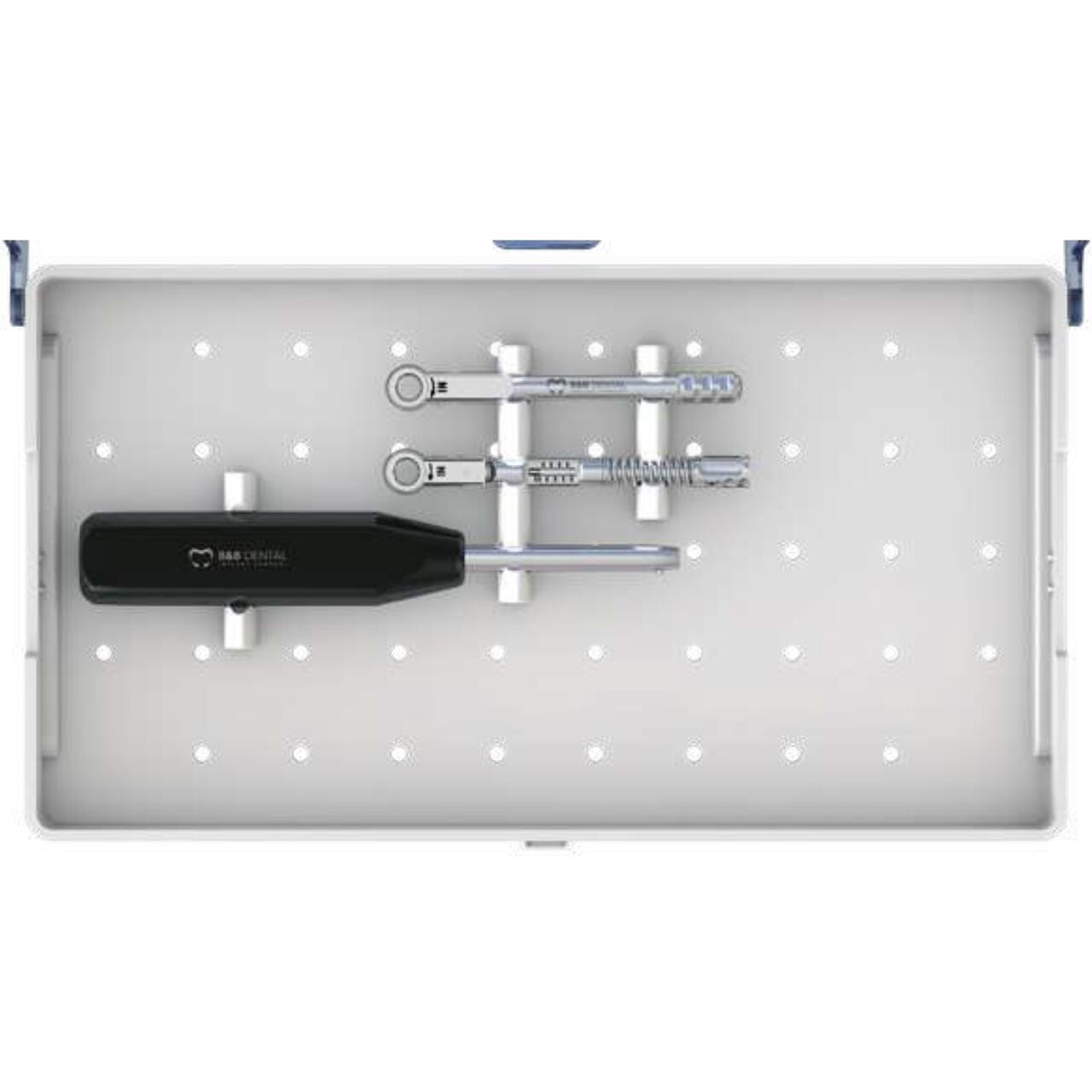

Tava inferioară:
Straight manual key – Ref. 3P-00090CM
Torque ratchet – Ref. 00376DIN
Ratchet – Ref. 00376
